Product Description

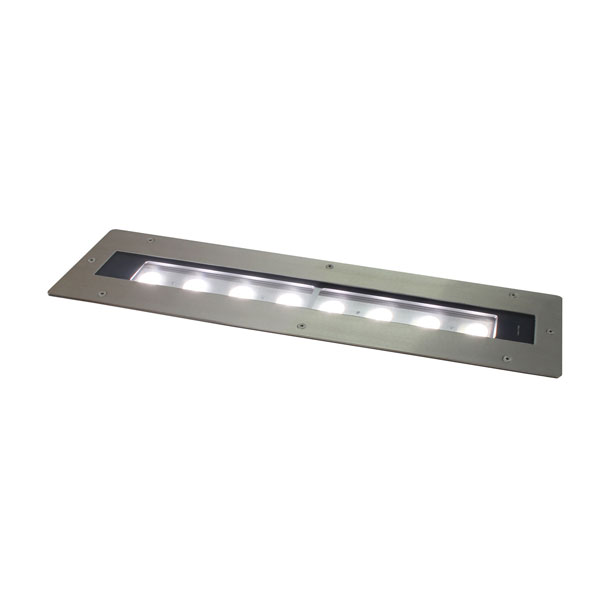

White Balance IP 67 inground LED linear bar 60 cm long (on request). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
CW+WW (5W)
|
Number of LEDs
|
8 (2700K) + 8 (6500K)
|
Lumen max (lm)
|
4000
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
34
|
| Physical | |
Marine Grade treatment
|
None
Yes
|
Tilt
|
Manual 0° 3° 6°
|
IP protection rating
|
67
|
IK grade protection
|
10
|
Sizes l x p x h (mm)
|
763 X 182 x 173 mm
|
Weight (Kgs)
|
xxx
|
Mounting systems
|
Inground
|
Colour finishing
|
None
|
