Product Description

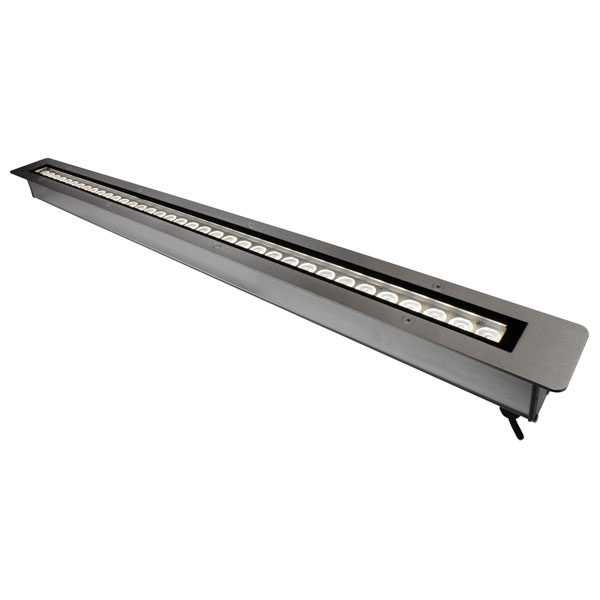

Compact IP 67 Monochromatic inground LED linear bar PLUG-IN version. Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 3°.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2900K
WHITE 4000K
|
Number of LEDs
|
36 Mid Power
|
LED expected lifetime (hrs)
|
90000
|
Lumen max (lm)
|
4800
|
| Optics | |
Lenses
|
5°
10°
10°x30°
10°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H07 1mt
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
36
|
Current
|
150mA@230VAC
|
| Physical | |
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
IK grade protection
|
09
|
Sizes l x p x h (mm)
|
1015x84x70
|
Weight (Kgs)
|
3,8
|
Mounting systems
|
Inground
|
Colour finishing
|
None
|
