Product Description

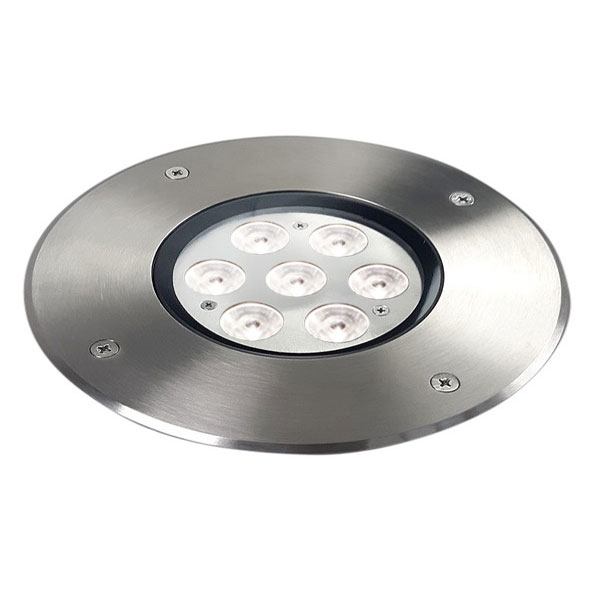

Inground LED fixture (230V) with 7 monochromatic LEDs suitable for outdoor installation. IP 68 not for immersion degree of protection. On board power supply and DMX (POB). AISI 316 body and flange. Plug-in version.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6000K
|
Number of LEDs
|
7
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
1800
|
CRI
|
>70 (on request >80, >90)
|
| Optics | |
Lenses
|
5°
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f 100°
|
| Connections | |
Connectors and cables
|
1.5mt 3x0.75mm cable
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
13
|
Current
|
60mA@230VAC
|
Inrush current
|
40A@230V
|
| Physical | |
Materials
|
Ultra clear 10mm tempered glass
PMMA lenses
All in stainless steel AISI316
|
IP protection rating
|
68 (not for immersion)
|
IK grade protection
|
09
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
190x80
|
Weight (Kgs)
|
2
|
Mounting systems
|
Inground
|
Colour finishing
|
AISI 316 brushed
|
Marine Grade treatment
|
Yes
|
