Product Description

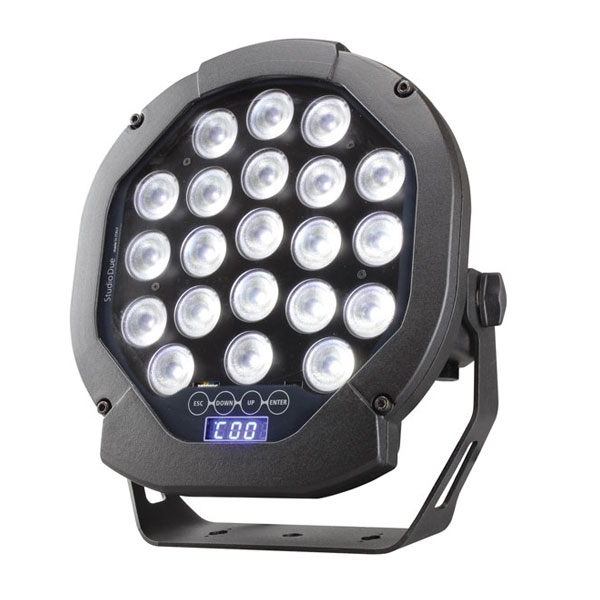

Hi Power wash LED Monochromatic fixture. 42 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. Touch control panel. IP 67 protection rating. Dimmable version RDM-DRS.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Lumen max (lm)
|
9000
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
75
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
135°
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
270 x 100 x 303
|
Weight (Kgs)
|
5
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
